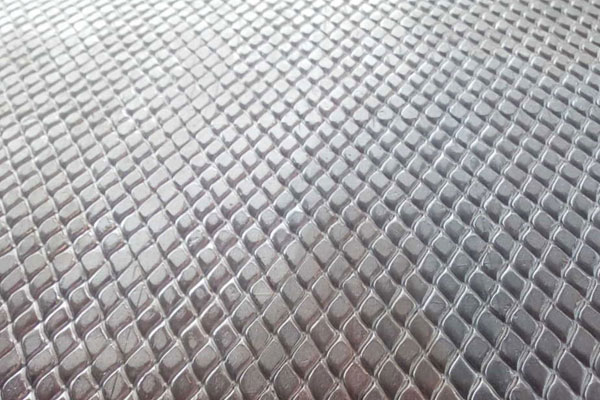

Chequered Plywood is a high-quality multi-functional product, which can be used in the construction industry for bridges, heavy industry and structures etc. Its load-bearing capacity is also enhanced due to extra compression. It is manufactured by selecting quality veneers infused with modified RPF resin for longer life and better performance in all applications. The infusion of resin in veneers is more than 30% of the weight of veneers. The panel develops a high density that sustains the rigours of flooring in public use because of high pressure. This also makes it anti-slip plywood. The main purpose of making this plywood anti-slip and anti-skid is to accommodate it in the application of flooring that too in heavy vehicles and large containers. The emergence of chequered plywood has revolutionized the flooring in those sectors and created fresh avenues in other sectors too.
Certified under Forest Stewardship Council
IGBC -> Indian Green Building Council. IGBC is the accreditation agency for LEED rating in India.
E-1 CERTIFIED Bhutan Tuff products are Low Formaldehyde Emission (LFE) certified OHSAS 18001 Certified
JAS-ANZ CERTIFIED ISO-9001:2000 Certified Company
ISI CERTIFIED Bhutan Tuff products are made under strict BIS Standards (Bureau of Indian Standard) an Indian Government Body.
ISO 14001 Certified for Quality Management System
OHSAS 18001 Certified for Quality Management System Standard
Make in India
Technical Specification
| Test | Required Value / Tolerances | Observed |
|---|---|---|
| Length | 2440 (+6mm) | 2440mm (+6mm) |
| Width | 1229 (+3mm) | 1220mm (+3mm) |
| Thickness | +5% | 12.11, 12.19, 12.30, 12.10. 11.95, 12.06, 12.15 (12mm +%) |
| Squireness | 0.20% | 0.16% |
| Straightness | 0.20% | 0.11% |
| Workmanship & Finish | Satisfactory | Satisfactory |
| Physical Properties Adhesion of Ply |
Min-Pass Std. |
Excellent |
| Moisture content | 5% to 15% | 8.60% |
| Tensile Strength Parallel to Grain |
32.50N/SQ.MM |
42.23N/SQ.MM |
| Perpendicular to Grain | 22.50N/SQ.MM | 30.68N/SQ.MM |
| Sum of Both | 60.0N/SQ.MM | 72.91N/SQ.MM |
It can be used for Bus flooring, Factory flooring, Laboratory flooring, Truck flooring, Flooring for cold storage, Hall, Ships & Trains.
This is an anti-skid plywood which is useful in flooring, especially in heavy vehicles and large containers. It provides a friction-resistant, anti-skid chequered surface, which is bonded with superior-grade phenolic resin, thus finding application in the flooring of heavy vehicles and large containers. It is medium-density plywood with excellent strength, durability and all-weather resistance.
